Supports VS1005, VS1205 or VS8205 devices Open source VSOS kernel and device drivers Supported by VSIDE development tools

VS1005 Developer Board

VS1053 USB Music Player

Features

·                    Supports VS1005, VS1205 or VS8205 devices

·                    Open source VSOS kernel and device drivers

·                    Supported by VSIDE development tools

Description

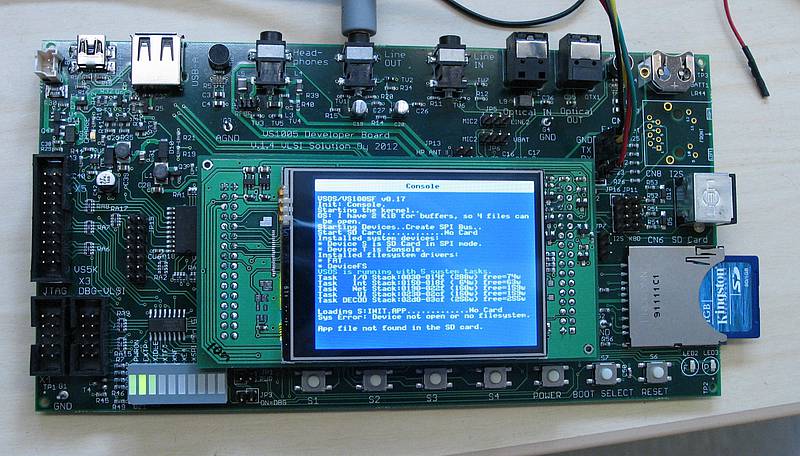

VS1005 Developer Board is an application development board for VS1005. It features all necessary hardware for writing and testing software on VS1005.

The board has connectors for headphone, line-in, line out, optical S/PDIF in, optical S/PDIF out, USB and UART. The board also features a matrix display and connectors for helping evaluation measurements and interfacing to other boards.

The board is powered from the USB bus. A switch is used to attach and detach the USB data lines. Serial port is initially used as a debugger interface and for loading code to VS1005. In the future debug interface can also be used enabling hardware debugging like single step execution of the program.

The Developer Board has six buttons. They are user assignable.
