VS1053 USB Music Player

Features

·                  VS1063, VS1053 or VS8053 DSP processor

·                  MP3, WMA, AAC, HE-AAC, OGG, WAV, MIDI decoding (with VS1053 processor)

·                  MP3, WMA, AAC, HE-AAC, OGG, WAV, FLAC decoding (with VS1063 processor)

·                  OGG, WAV, MIDI decoding (with VS8053 processor)

·                  PCM, IMA ADPCM encoding (with VS1053 and VS8053 processors)

·                  PCM, IMA APDCM, G.711 ulaw/A-law, G.722 ADPCM, Ogg Vorbis, MP3 encoding (with VS1063 processor)

·                  AT25DF041A or equivalent 4 megabit SPI boot flash

·                  Single 5V input, LDO linear regulators for CVDD, AVDD and IOVDD.

·                  1 push-button and 4 LEDs for user interface

·                  26-pin header for signals, including stereo line in, line out and headphone out

·                  UART connections for debug interface, SPI control/data bus for microcontroller

·                  Easily integrated to custom PCB for rapid application development

·                  Hi-Fi quality audio performance

·                  Supported by VSIDE development tools

Description

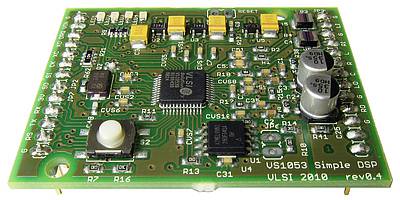

The VS1063 / VS1053 / VS8053 Simple DSP Board is a small, low-cost and high performance audio DSP board for the VS1063, VS1053 or VS8053 Audio Codec IC.

The VSx053 Simple DSP Board is meant to be used in DSP software developement and as a "plug-in" module in electronic applications. The board has two rows of pin headers, one on each edge of the board. One edge has digital connections for connecting to a serial port or to an SPI port. This can be used to interface the board with a PC and VSIDE or a host microcontroller. The other edge has analog connections featuring Line In, Line Out and Headphone Out. Line In and Line Out are AC-coupled and can be connected directly to other audio circuits.

The board has necessary power supplies for the VSx053. It also has four LEDs, and a button for UI. A boot EEPROM is included so that application software and also sound samples can be stored on the board.

The board can be used with the VSx053 Simple DSP Host board for easy
connectivity to the outside world.

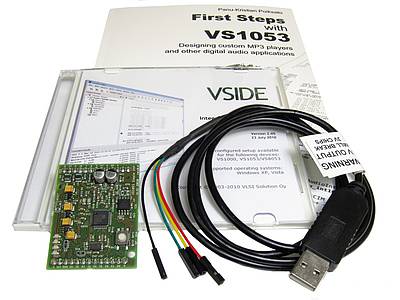

VS1063 / VS1053 / VS8053 Simple DSP Starter Kit

The VS1063/VS1053/VS8053 Simple DSP Starter Kit is intended for quick prototyping using a PC with a USB port.

The components included in the kit are:

·                  VS1063, VS1053 or VS8053 Simple DSP Board

·                  VSIDE USB UART cable

·                  Book: First Steps with VS1053

·                  With VS1063: Leaflet "First Steps with VS1053 - VS1063 Changes"

·                  VSIDE on CD

No additional components are required to start developing applications for the VS1063/VS1053/VS8053.

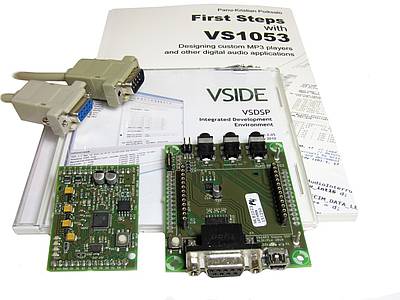

VS1063 / VS1053 / VS8053 Simple DSP Professional Kit

The VS1063/VS1053/VS8053 Simple DSP Professional Kit is intended for quick prototyping using a PC with a serial port. In additional to the Simple DSP Board it also containts a Host Board the provides additional features like stereo earphone and line outputs, a stereo line input, and a reset button.

The components included in the kit are:

·                  VS1063, VS1053 or VS8053 Simple DSP Board

·                  VSx053 Host Connector Board

·                  RS232 cable

·                  Book: First Steps with VS1053

·                  With VS1063: Leaflet "First Steps with VS1053 - VS1063 Changes"

·                  VSIDE on CD

No additional components are required to start developing applications for the VS1063/VS1053/VS8053.
